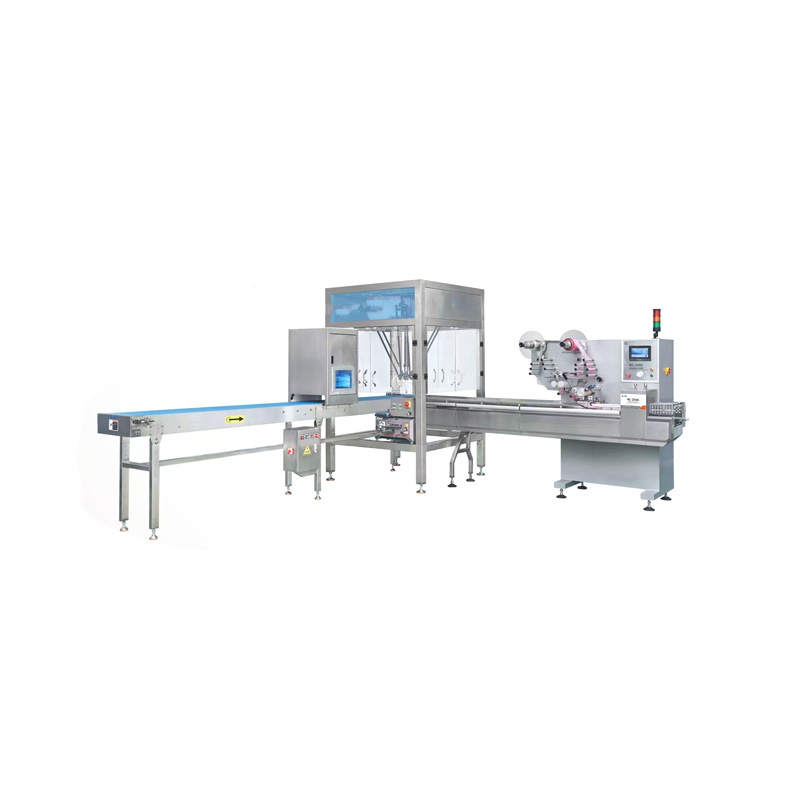

RC-ZJ800/1100/1300 Fully automatic multifunctional spider robotic arm

The RC-ZJ800/1100/1300 Fully Automatic Multifunctional Spider Robotic Arm is a high-performance robotic solution designed for precision, versatility, and efficiency in various automated industrial processes. Built for tasks that require high-speed handling, precise placement, and adaptability, this robotic arm excels in packaging, assembly, and material handling operations across a wide range of industries.

With its robust build and multifunctional capabilities, the RC-ZJ series is engineered for heavy-duty applications, delivering a rated load of up to 3.0 kg and an impressive no-load classic beat count of 370 beats per minute, significantly enhancing productivity and throughput.

This advanced robotic arm operates in a range of -10~50℃, and its IP55 protection level ensures durability even in demanding environments. The RC-ZJ robotic arm offers precise control, energy efficiency, and long-lasting performance.

Key Features:

1. High Precision and Performance

      Rated Load: The RC-ZJ800/1100/1300 can handle a rated load of 3.0 kg, making it ideal for handling small to medium-sized components with high precision.

      Classic Beat Count: With a 370 beats per minute in a no-load condition and 50 beats per minute under a 3 kg load, the robotic arm ensures rapid and accurate movements, optimizing workflow efficiency.

      Precision Control: The body weight tolerance is finely tuned to ±0.05 mm, ensuring the highest level of accuracy in handling and placement tasks.

2. Versatile Working Environment

      Temperature Range: The robotic arm is built to perform reliably in a wide range of environmental conditions, from -10°C to 50°C, with humidity levels up to 80%.

      Protection Level IP55: With an IP55 protection rating, the RC-ZJ robotic arm is resistant to dust and water, ensuring operational reliability in harsh industrial environments.

3. Efficient Power and Control System

      Rated Power: With a 2.35KW rated power and 6KVA-10KVA power capacity, the robotic arm is designed for maximum efficiency, reducing energy consumption while delivering exceptional performance.

      Voltage and Power Input: The system operates on a 24V control system voltage and three-phase 380VAC power input, ensuring stable operation even under demanding conditions.

      Air Input: The required 0.4-0.6MPa air pressure with a flow rate ≥600L/min ensures smooth operation, with minimal downtime.

4. Compact and Robust Design

      Main Frame Size: The RC-ZJ robotic arm is designed with a compact main frame size of 1620×1620×2250mm, making it suitable for integration into production lines with limited space.

      Body Weight: Weighing between 85-93.5 kg, this robotic arm is both durable and lightweight, making it easy to integrate into various industrial settings.

5. Enhanced Safety and Reliability

      Noise Levels: With a noise level of less than 70 dB, the robotic arm ensures a quieter working environment, reducing noise pollution in factories and ensuring a safer workspace for operators.

      Protection Features: The IP55 protection level guarantees durability in environments exposed to dust and moisture, ensuring the arm's performance and longevity.

Applications:

The RC-ZJ800/1100/1300 Fully Automatic Multifunctional Spider Robotic Arm is perfect for use in various automated processes, including:

      Packaging Automation: Ideal for pick-and-place tasks, packaging, and material handling in production lines.

      Assembly Lines: Perfect for small parts assembly and high-precision component placement in industries like electronics, automotive, and consumer goods.

      Material Handling: Efficiently moves components from one area to another with high-speed and accuracy.

      Inspection and Quality Control: The robotic arm can be used for visual inspections, measurement tasks, and quality control applications.
